Outdoor Unit, Series T+

BRAC-FM-IT2-18-R3-O

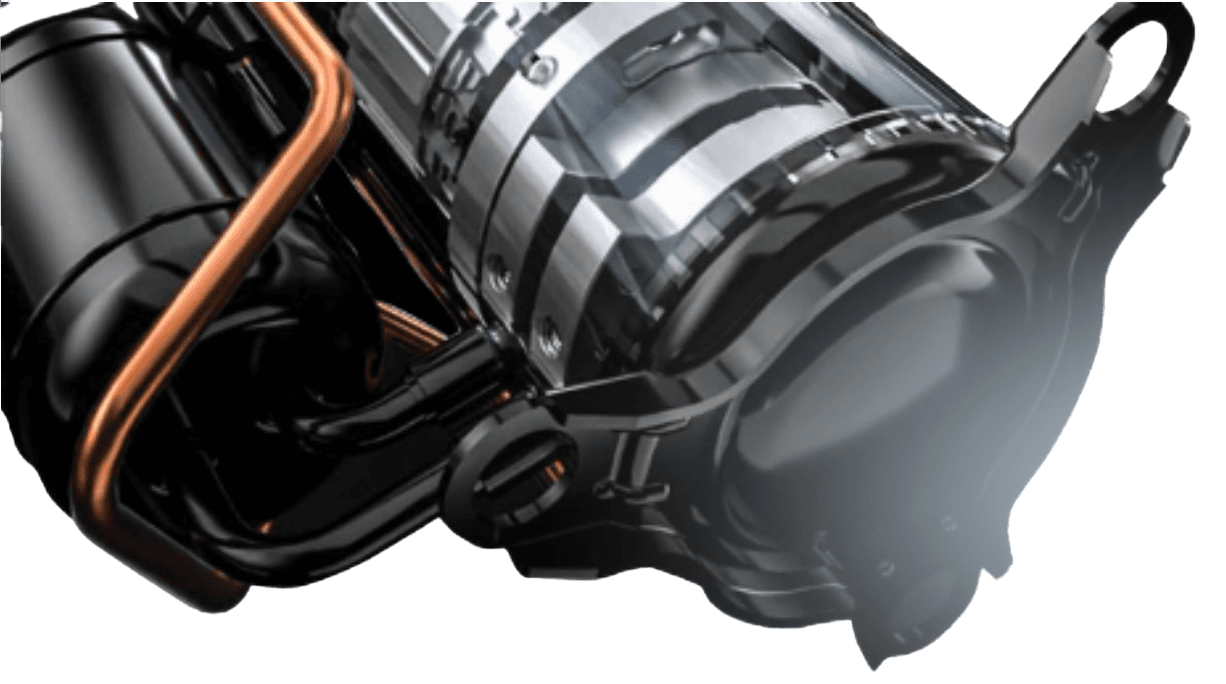

BAUF Airconditioning New Inverter Control System with Precise-control Inverter Deduction Algorithm reduces energy loss by enabling more precise signal reception, accurate data processing, and prompt delivery of instructions the compressor. As a result, BAUF inverter compressor offers more stable operation than common inverters. It’s super-smooth inverter frequency of variation ensures you never notice fluctuations in room temperature change, precisely maintaining the set temperature.

A+++

Features — Outdoor Unit, Series T+

Low Noise Airflow System

Uses a large cross-flow fan to reduce indoor noise without compromising airflow volume or efficiency.

Fire-proof Electric Box

Meets high fire safety standards with a new design, preventing internal fires caused by electrical sparks.

Self Diagnosis

Automatically shuts down and displays error codes to protect the system and enable fast service when a fault occurs

Thermostatic Technology

Maintains a steady temperature within ±0.5°C by precisely controlling compressor speed, ensuring consistent comfort.

4D AIR FLOW

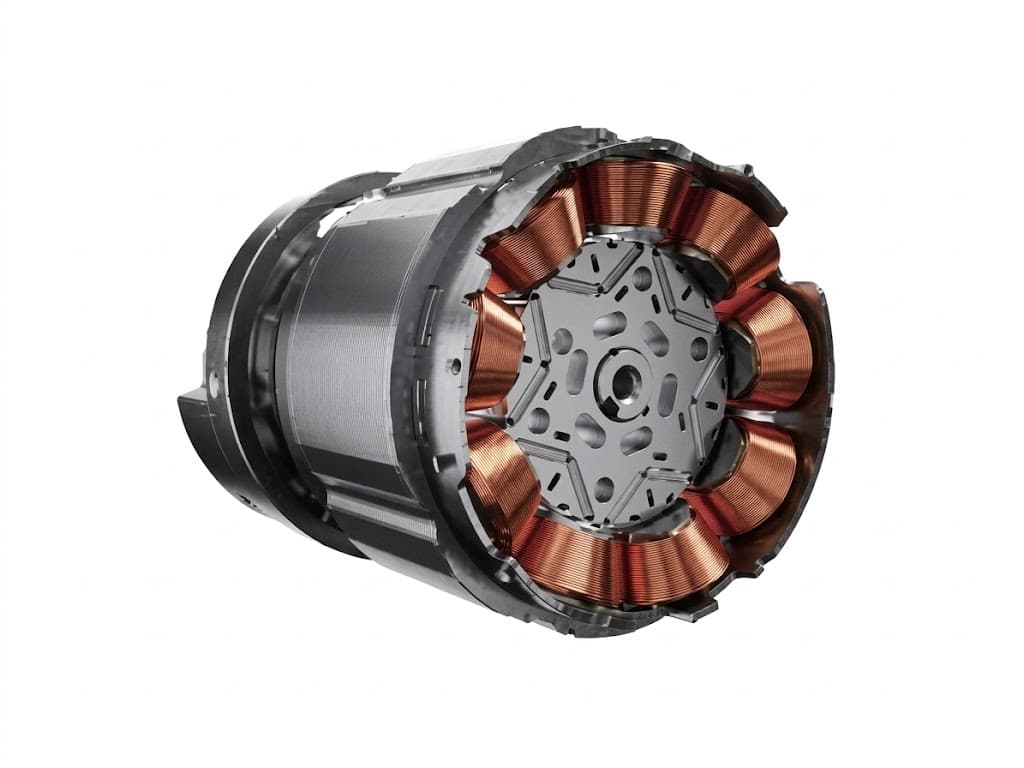

DC Compressor Motor

0% of the power consumption of an airconditioner is utilized by the motor. The ultra smooth operating frequency of BAUF airconditioning motors ensures operating reliability, low energy consumption and precise operating parameters

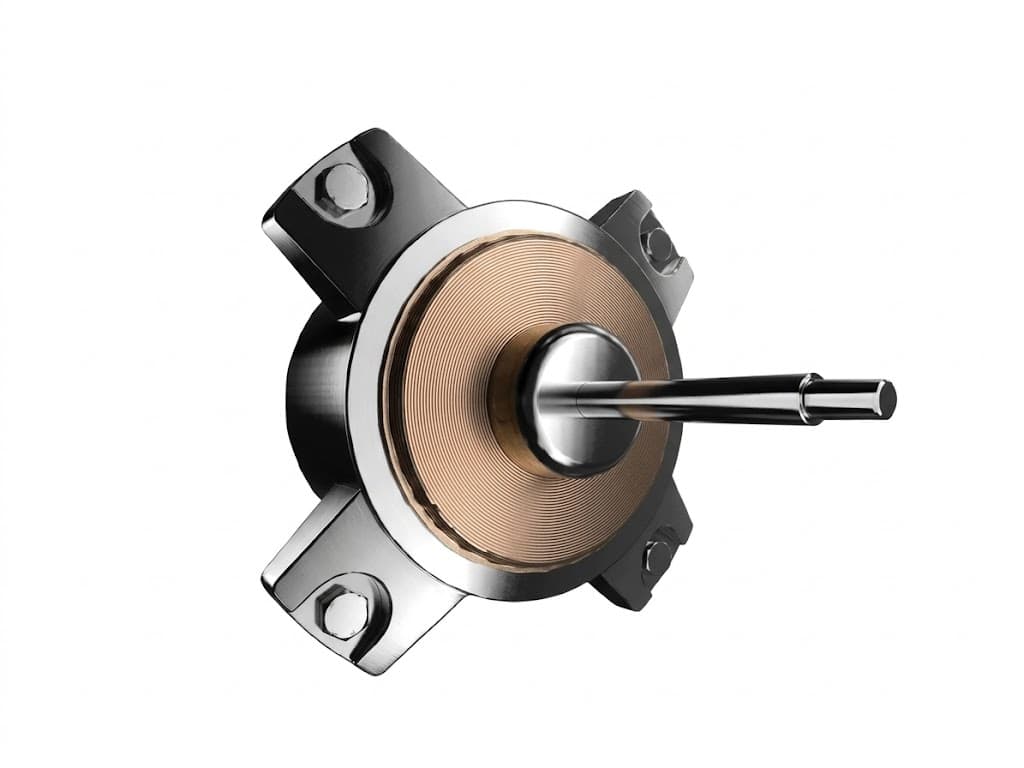

DC Outdoor Fans

DC Outdoor fans are widely regarded as the most eﬃcient type of fans. They consume significantly less power than AC fans. In fact, DC fans consume up to 70% less energy to produce the same output as traditional AC fan types, with more range and less noise.

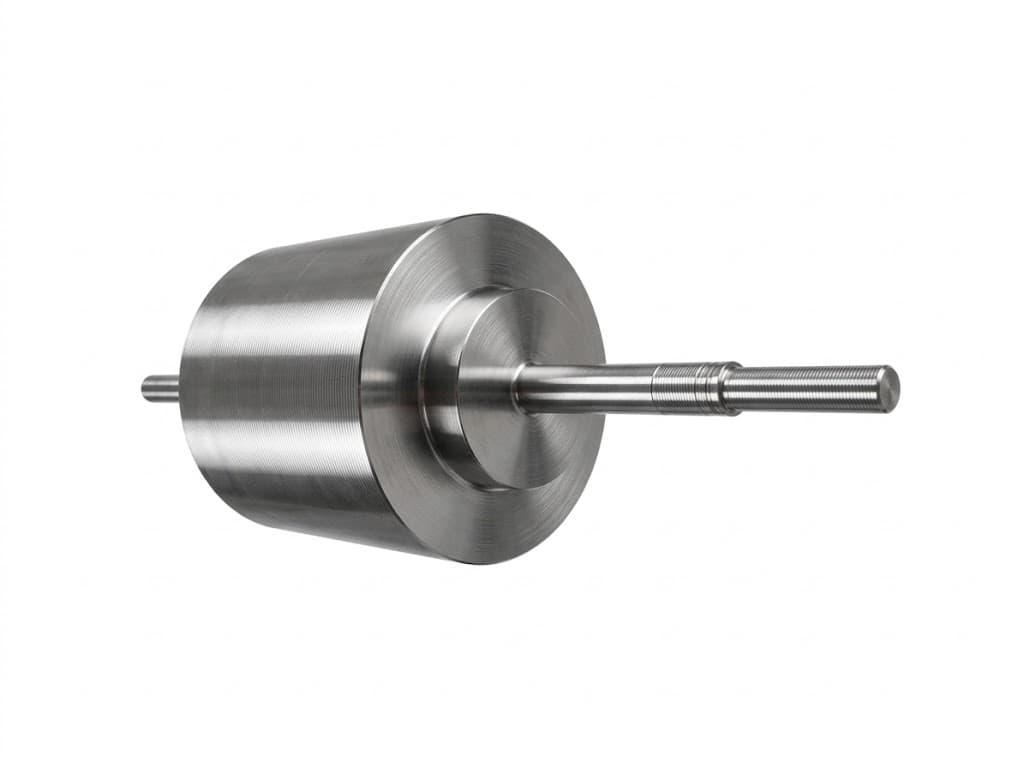

DC Motor of Indoor Unit Cross Flow Fan

These allow for more even airflow in variable conditions whilst maintaining a low noise level, suitable for home and public areas.

Specifications

BRAC-FM-IT2-18-R3-O

Max, of indoor units	Units	2
Energy Classification		A+++
Rated cooling capacity	kW	5.27 (1.29~6.30)
Rated heating capacity	kW	5.27 (1.29~6.30)
Power Supply		220~240V 50Hz
Cooling Rated Input Power	kW	1.35 (0.28~2.00)
Heating Rated Input Power	kW	1.25 (0.28~2.00)
Max current	A	9,5
SEER for cooling		8,5
SCOP for heating		4,6
EER		3,91
COP		4,22
Outdoor sound pressure level		56
Refrigerant Type		R32
Charged Volume	kg	1,2
Connecting pipe gas	inch	3/8
Connecting pipe liquid	inch	1/4
Max, length for all rooms	m	40
Max, length for one IDU	m	25
Max, height differ, between IDU and ODU	m	15
Max, height differ, between IDUs	m	15
Ambient temp. range outdoor (Cooling)	℃	-15~53
Ambient temp. range outdoor (Heating)	℃	-25~30
Net dimensions (W х D х H) outdoor	mm	852×349×603
Net dimensions (W) outdoor	mm	852
Net dimensions (D) outdoor	mm	349
Net dimensions (H) outdoor	mm	603
Net weight outdoor	kg	32
Power Wiring (ODU)	mm²	3×1.5
Connection Wiring (IDU&ODU)	mm²	4×0.75
