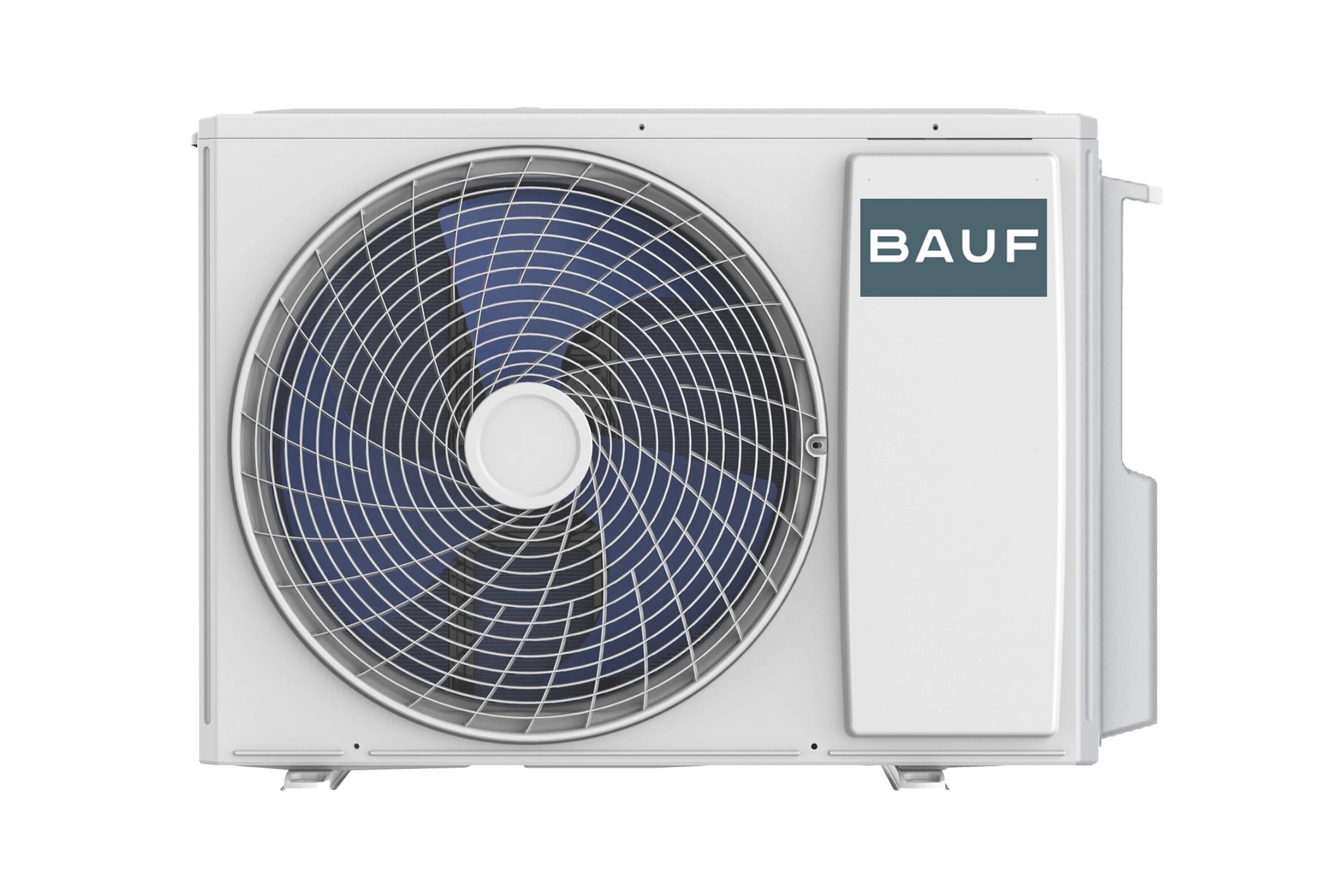

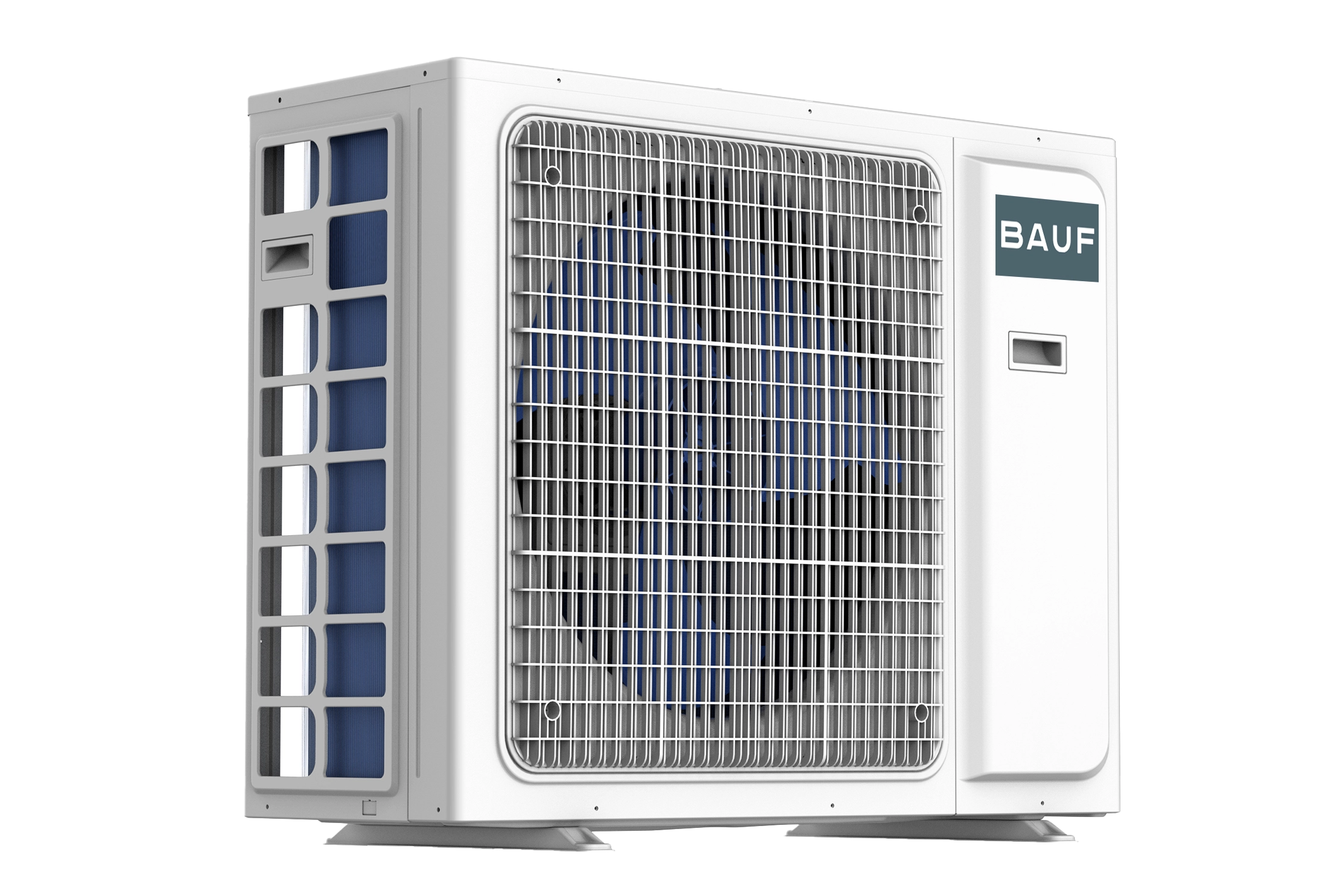

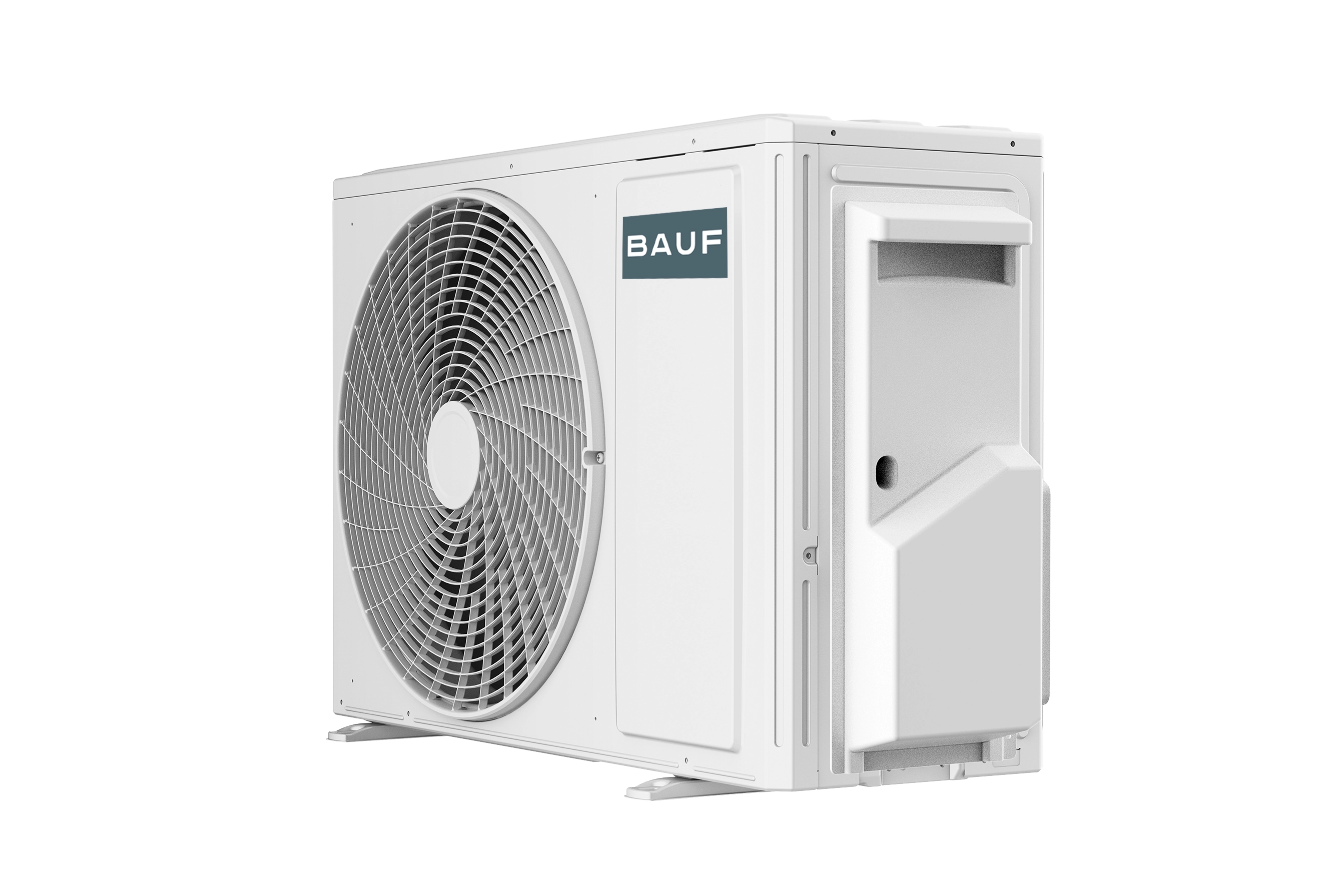

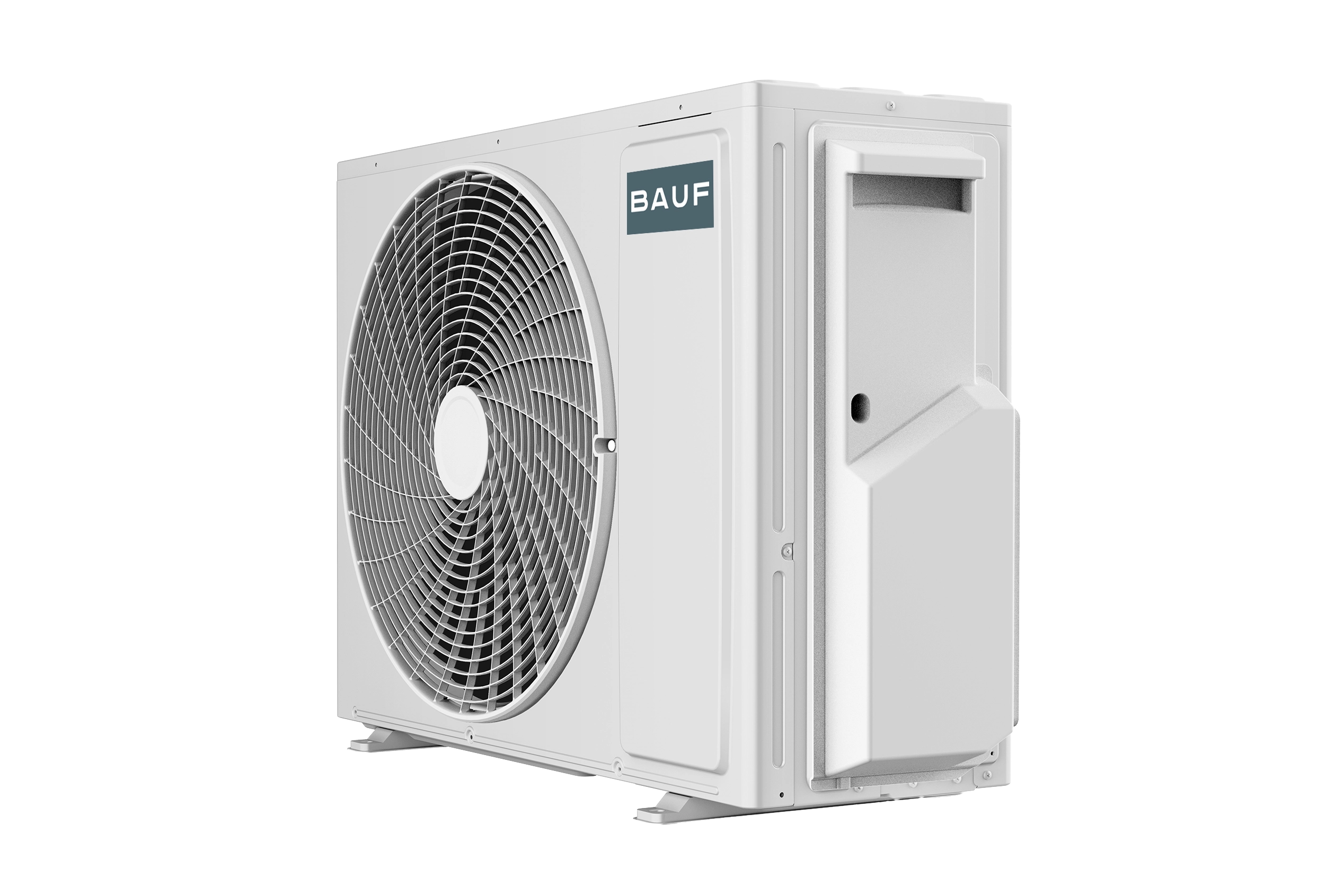

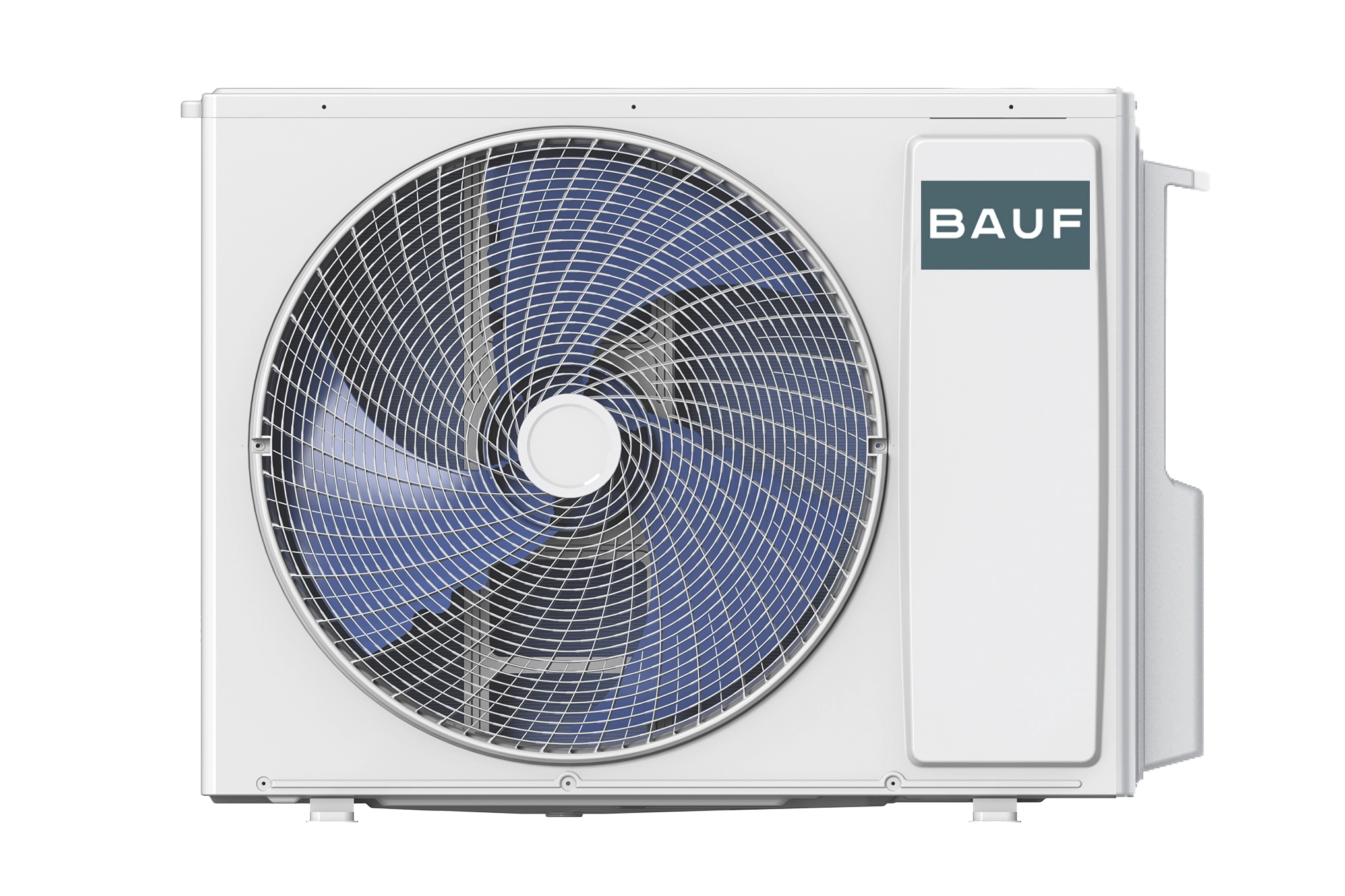

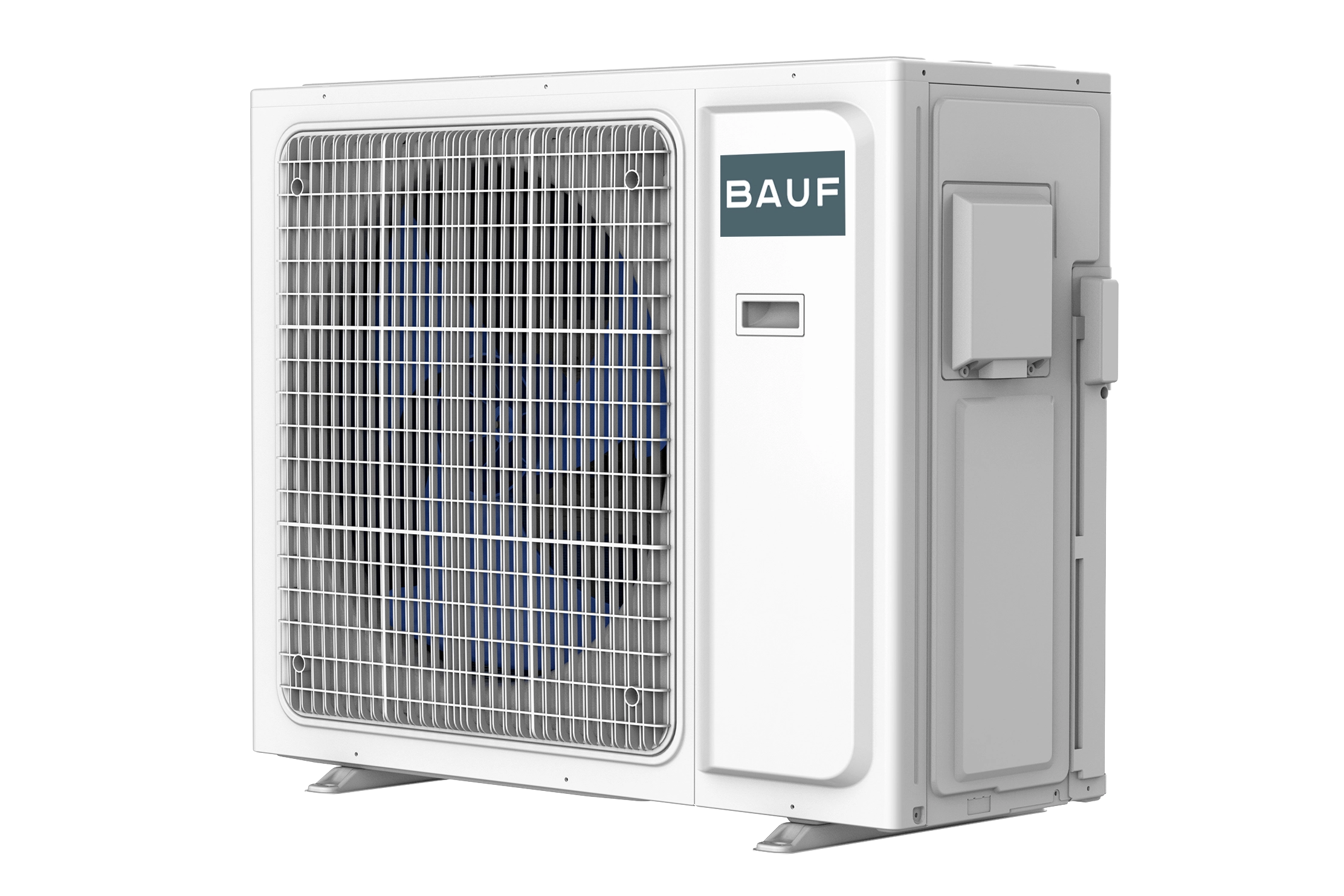

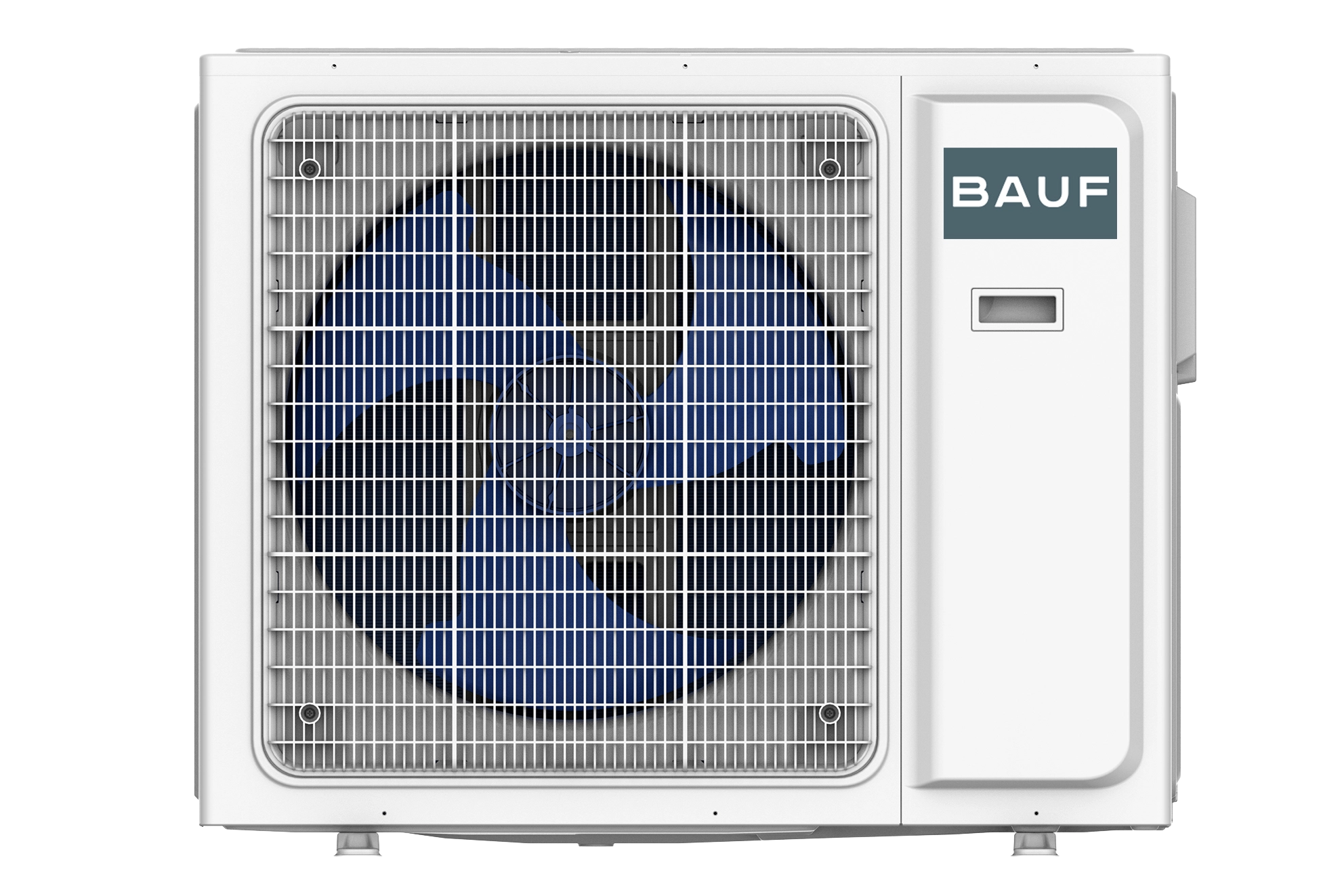

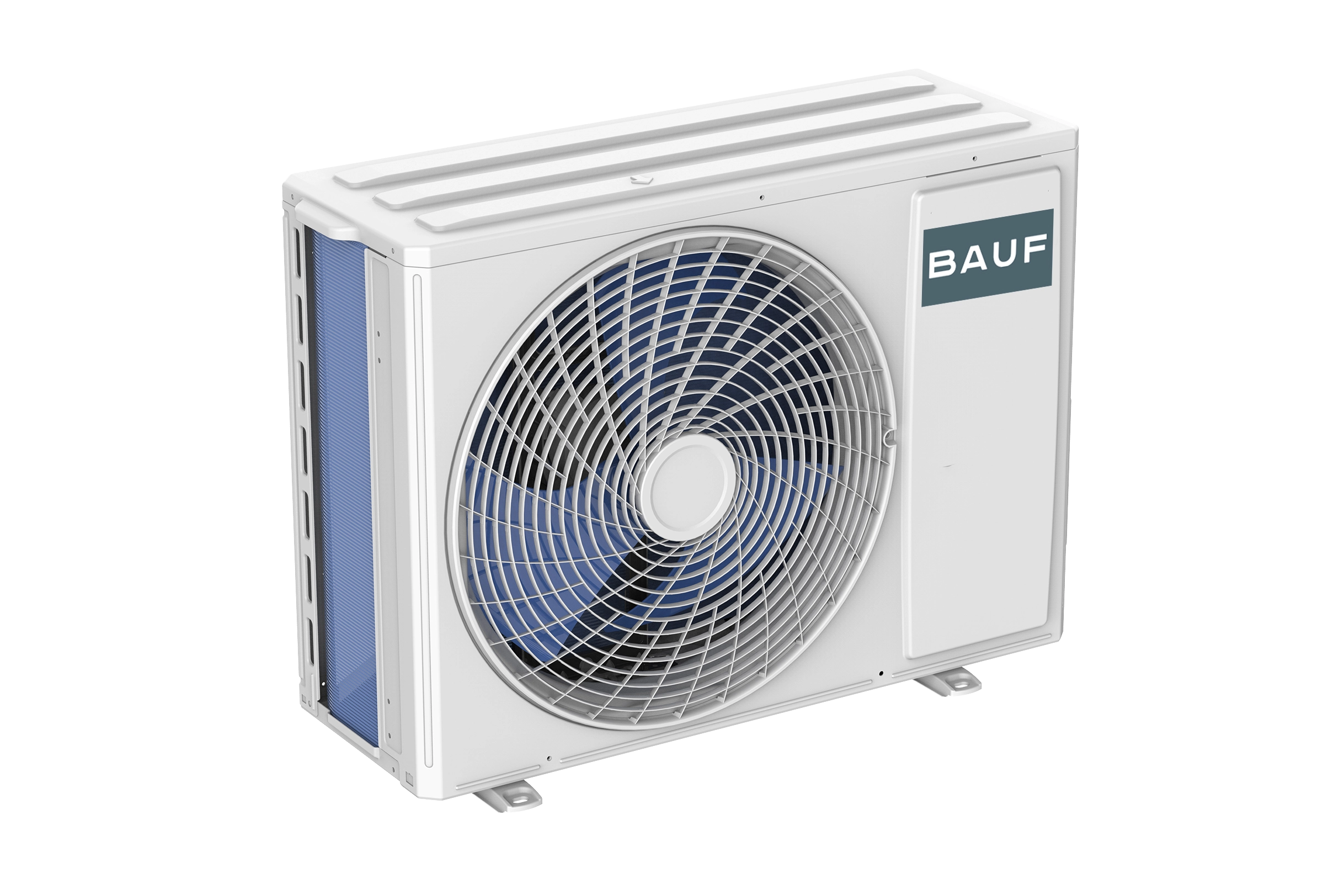

Outdoor Unit
BRAC-FM-IA1-14-R3-OBAUF Airconditioning New Inverter Control System with Precise-control Inverter Deduction Algorithm reduces energy loss by enabling more precise signal reception, accurate data processing, and prompt delivery of instructions the compressor. As a result, BAUF inverter compressor offers more stable operation than common inverters. It’s super-smooth inverter frequency of variation ensures you never notice fluctuations in room temperature change, precisely maintaining the set temperature.
A++
4D AIR FLOW
BAUF Airconditioning New Inverter Control System with Precise-control Inverter Deduction Algorithm reduces energy loss by enabling more precise signal reception, accurate data processing, and prompt delivery of instructions the compressor.
DC Compressor Motor
DC Outdoor Fans
DC Motor of Indoor Unit Cross Flow Fan
Specifications
BRAC-FM-IA1-14-R3-OCooling Capacity | kW | 4.1 (1.8-4.51) |
|---|---|---|
Heating Capacity | kW | 4.5 (2.05-5.28) |
Power supply | 220-240V 50Hz | |
Cooling Power Input | W | 1.24 (0.19-2.10) |
Heating Power Input | W | 1.15 (0.19-2.10) |
Max current | A | 12 |
SEER/SCOP | 6.15/4.12(F) | |
EER/COP | 3.31/3.91 | |
Sound Pressure Noise Level | dB(a) | 53 |
Net Dimension (W*D*H) | mm | 785×300×555 |
Packing Dimension (W*D*H) | mm | 900×380×615 |
Net Weight | kg | 30 |
Refrigerant Type/Charged Volume | R32/1,00 | |
Connecting pipe gas | inch | 3/8 |
Connecting pipe liquid | inch | 1/4 |
Max. length for all rooms | m | 40 |
Max. length for one IDU | m | 25 |
Max. height differ. between IDU and OU | m | 15 |
Max. height differ. between IDUs | m | 10 |
Power Wiring (ODU) | mm² | 3x2,5 |
Connection Wiring(DU & ODU) | mm² | 4x1,5 |
