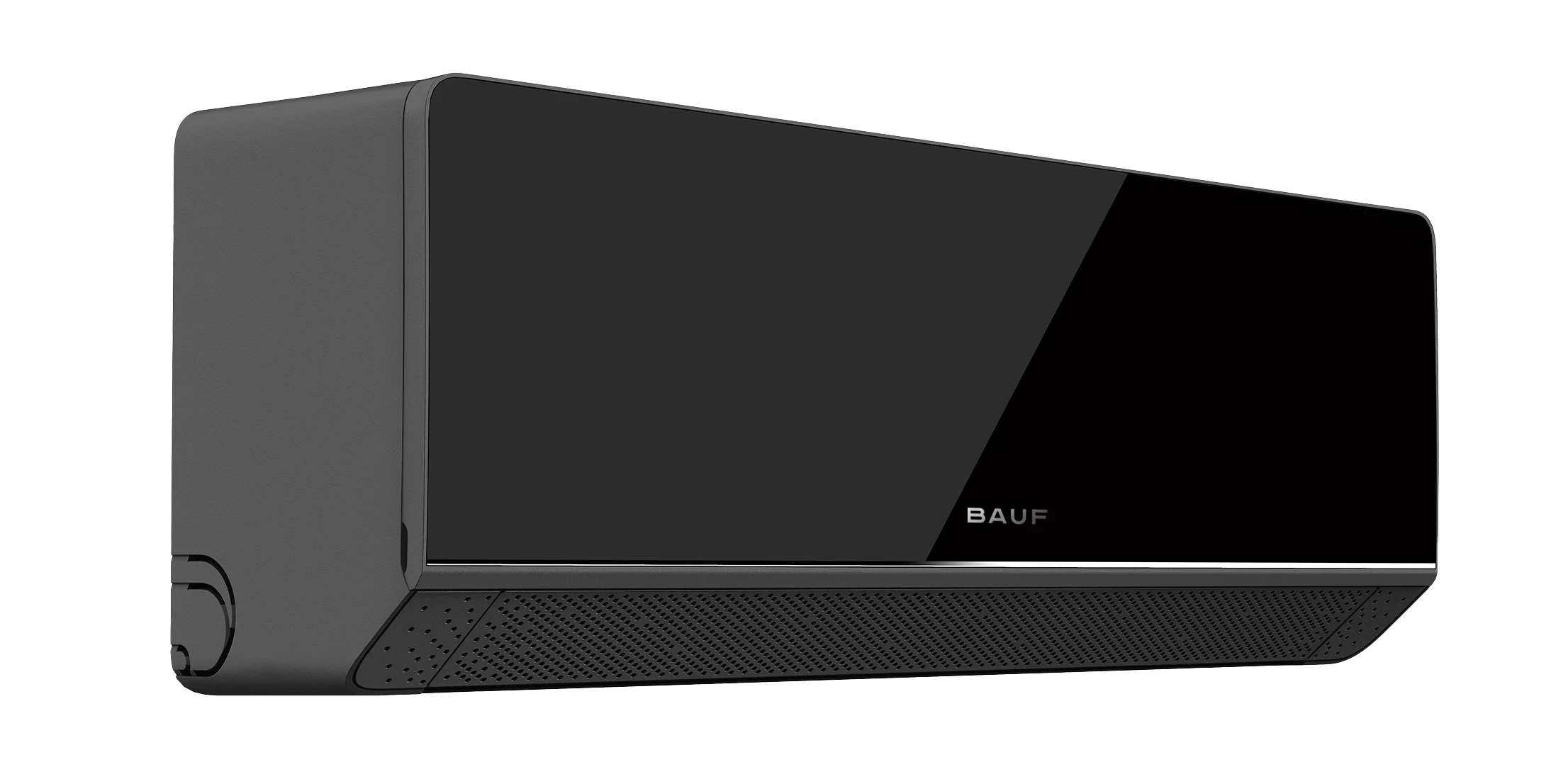

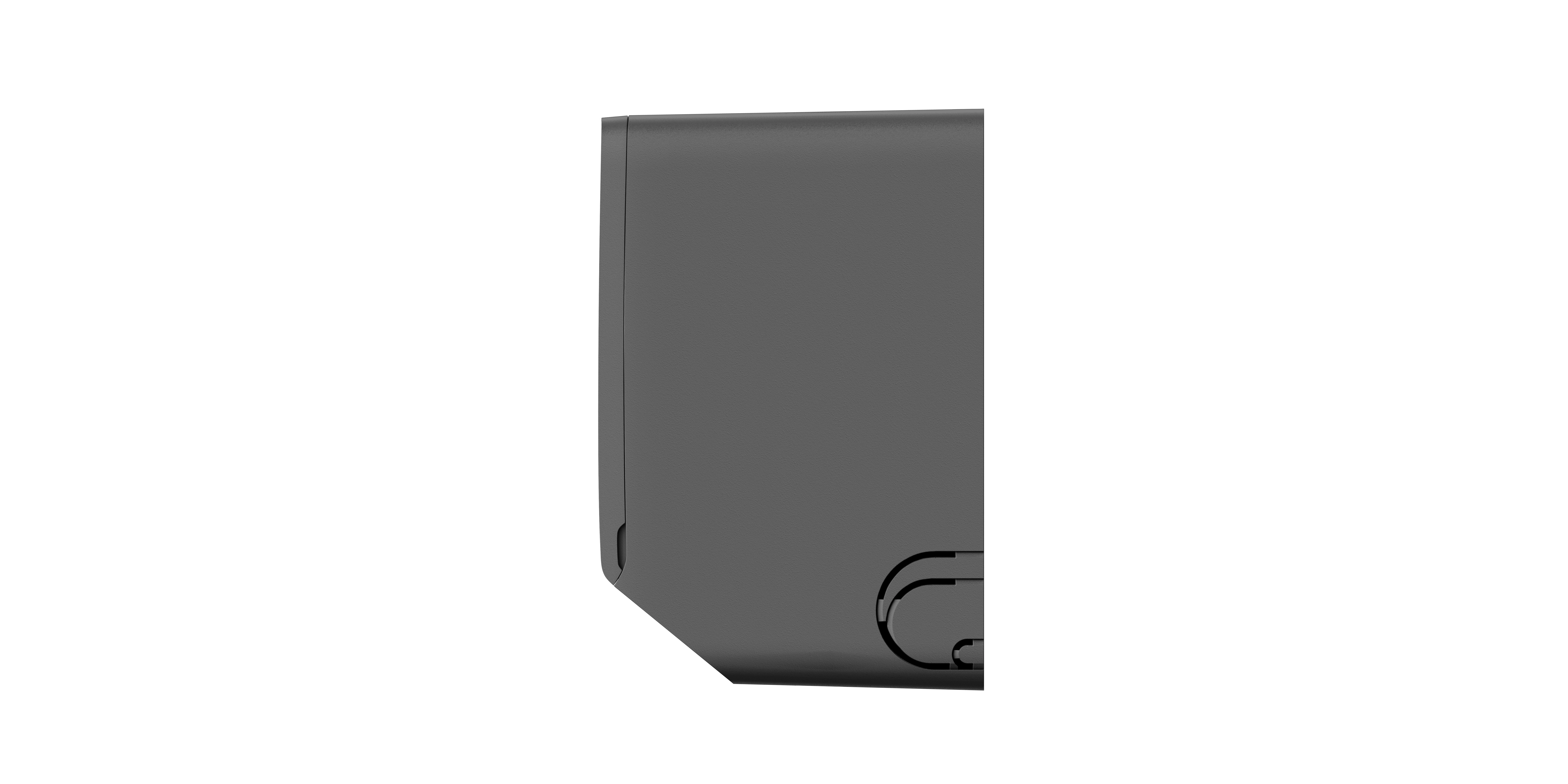

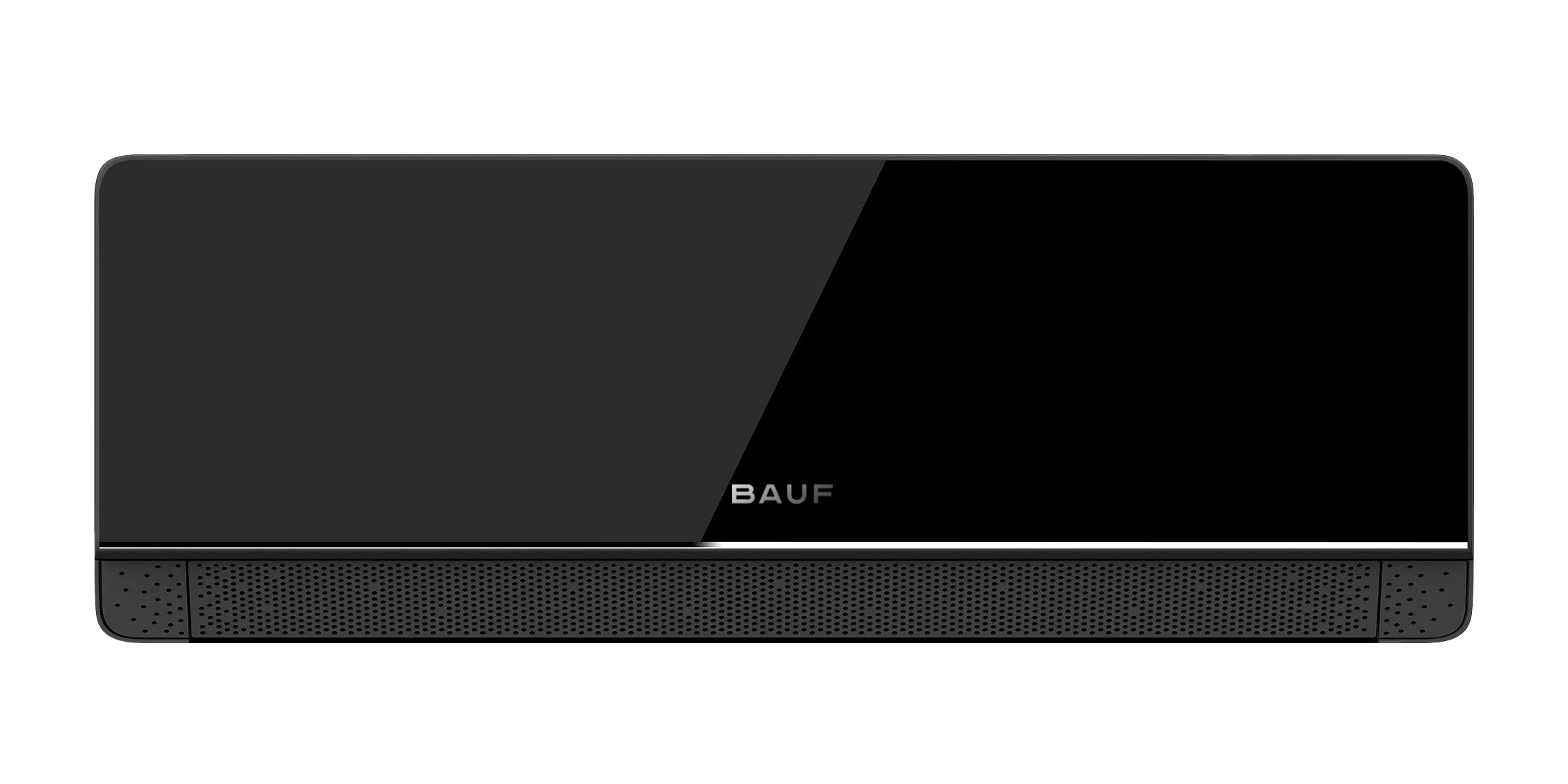

Momentum

BRAC-SP-IM1-9-R3

Our air conditioner combines style and functionality. It efficiently cools every corner of your space with an air supply distance of up to 15 meters. The optimized fan control logic and anti-cold air design prevent sudden cold blasts during heating. Additionally, the pneumatic maintenance deflector and quick-filter disassembly ensure ease of maintenance, with the filter boasting a sterilization and antifungal rate exceeding 99% for a healthier environment.

A++

Features — Momentum

Intelligent Wi-Fi function

Remotely manage your air conditioner's settings using wifi and a mobile app, ensuring optimal comfort from anywhere.

Easy Maintenance

Simplifies PCB maintenance with just three steps: open front panel, remove PCB box cover

BAUF
The wired controller offers intelligent control with a built-in Wi-Fi module, enabling it to receive signals from the app. This allows the unit to be managed via the app, where energy consumption is also displayed. Additionally, the app provides energy-saving suggestions, helping you optimize efficiency.

Technology 3D Inverter

Quick start
Rapid Comfort
Experience rapid comfort with our Quick Start function. This feature ensures your air conditioner reaches the desired temperature in no time, providing instant relief from extreme weather conditions. Enjoy efficient cooling or heating almost immediately after turning on the unit.
Guaranted efficiency
Optimal Performance
Our air conditioners are engineered for Guaranteed Efficiency, maximizing performance while minimizing energy consumption. This feature ensures optimal operation, helping you save on electricity bills and reducing your environmental footprint without compromising on comfort.
Warranty 7 years
Quality confidence
At our company, we stand behind the exceptional quality and durability of our products, which is why we offer a com prehensive 5-year warranty on all our air conditioning units. Additionally, we provide an extended 7-year warranty for the compressor, giving you even greater confidence in the long-term reliability of our core components.
Quiet operation
Silent Serenity
Relax in peace with our Quiet Operation feature. Designed to minimize noise, our air conditioners operate smoothly and silently, creating a serene atmosphere ideal for sleeping, working, or unwinding without the distraction of loud, intrusive sounds.
Self-diagnosis
The air conditioner features a microprocessor that meticulously monitors all modes of operation. If a refrigerant leak is detected, an error message will be displayed, helping to protect the compressor from damage due to refrigerant leakage.
Auto restart
BAUF air conditioners have a robust memory feature that allows them to resume operation with previously set configurations after a power outage, providing seamless and consistent comfort.
Intelligent defrost system
The heat pump includes an anti-freezing function, ensuring continuous operation. It can automatically sense temperature changes and prevent power-off issues, maintaining efficient performance.
Golden fin
The special anti-corrosion coating on the Golden Fin heat exchanger enhances heat exchange efficiency and extends the air conditioner's lifespan by more than five times.
BAUF

BAUF New DC inverter control system technology

Precision Control of Your Environment Under any Conditions!

BAUF New Inverter System Control Tech- nology ensures smooth operation and achieves the highest energy efficiency through precise temperature control, 0.3 W in standby mode and compressor operation at 1Hz. As a result, the BAUF Inverter Compressor offers more stable operation with a super smooth inverter frequency variation, ensuring stable room temperatures under any conditions.

Up to

40%

Ultra Energy Saving
Withing

±1C

Comfort With Stable Temperature
Start From

60Hz

Ultra Quick Cooling & Heating

Brand-new breeze technology micropore softens harsh and direct wind

Rapid cooling
Inlet air filtration
Wind wheel supercharge
Tender air from swing louver
Mixing airflow
BAUF

Specifications

BRAC-SP-IM1-9-R3
Rated cooling capacity
kW2.7 (0.60-4.00)
Rated heating capacity
kW3.2 (0.80-4.20)
SEER for cooling
7.5
SCOP for heating
4.2
Indoor noise level
dB(a)53
Power supply
220-240V 50Hz
Refrigerant/charge
kg0.55
Indoor air circulation cooling
m³/h650/570/520/470
Indoor air circulation heating
m³/h650/590/530/470
Connecting pipe gas
inch3/8
Connecting pipe liquid
inch1/4
Max. refrigerant pipe length
m20
Max. difference in level
m20
Ambient temp. range indoor
°C
Ambient temp. range outdoor
°C
Net dimensions (w x d x h) indoor
mm768x290x201
Net dimensions (w x d x h) outdoor
mm708x530x258
Net weight indoor
kg7.5
Net weight outdoor
kg23
