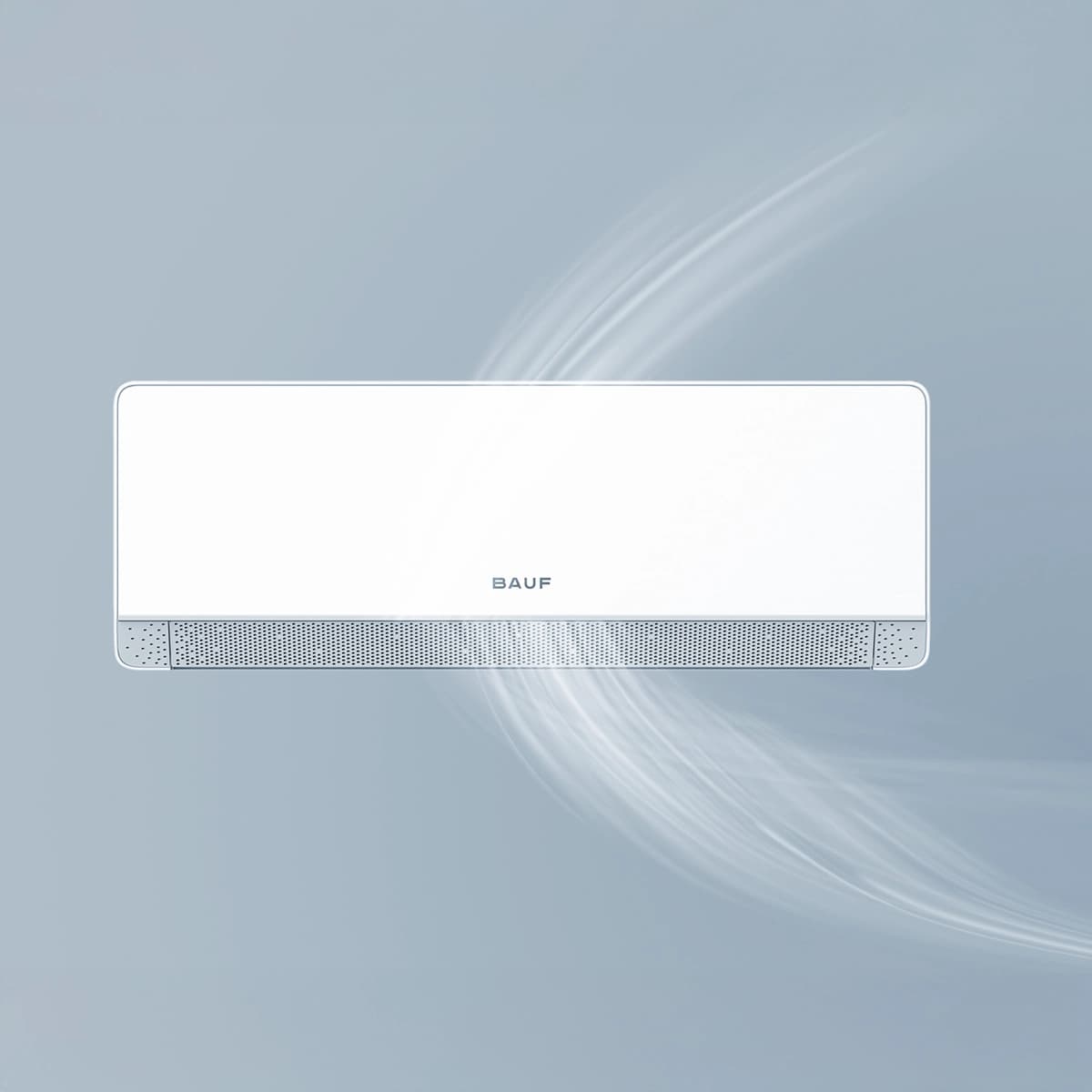

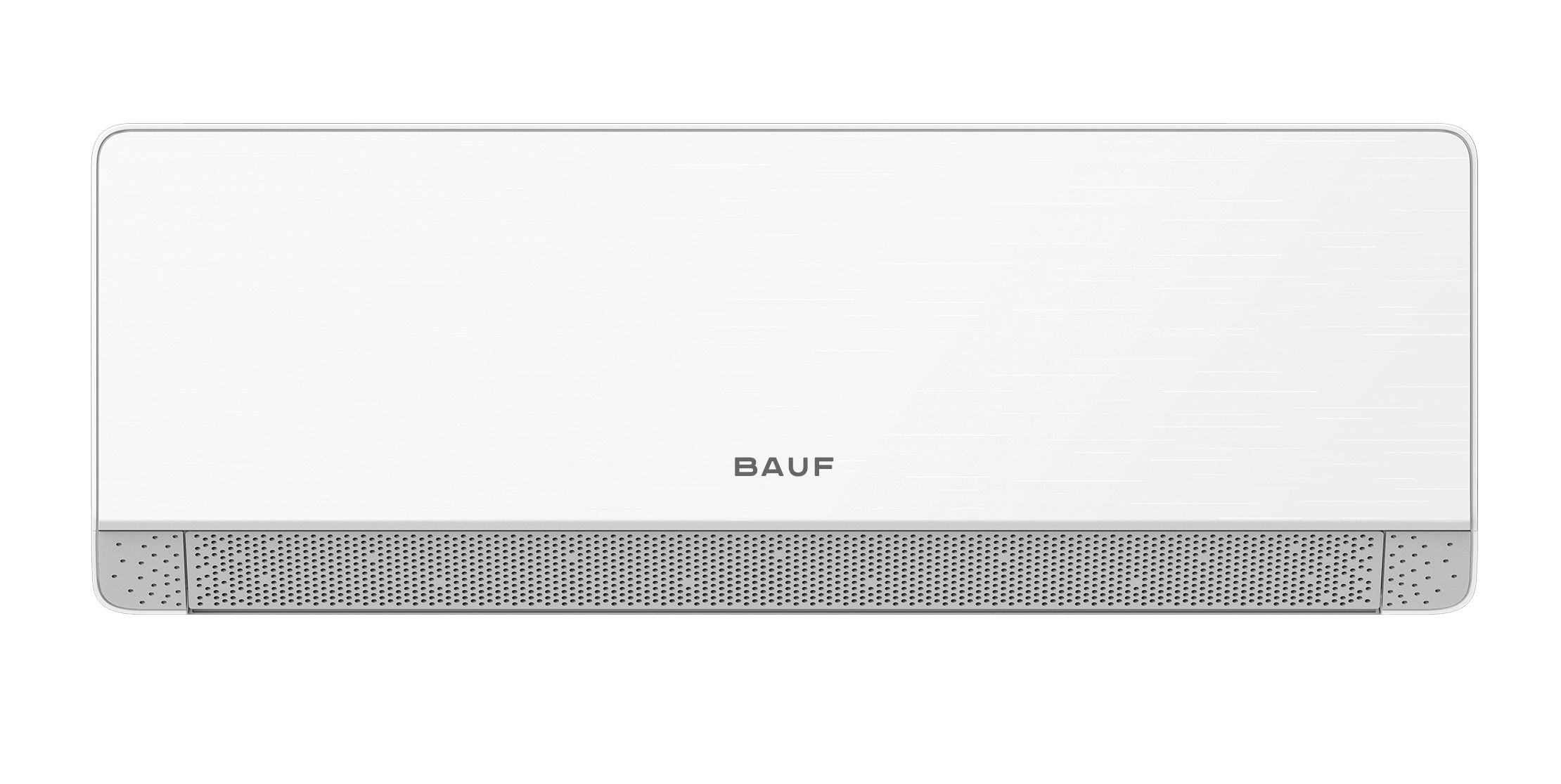

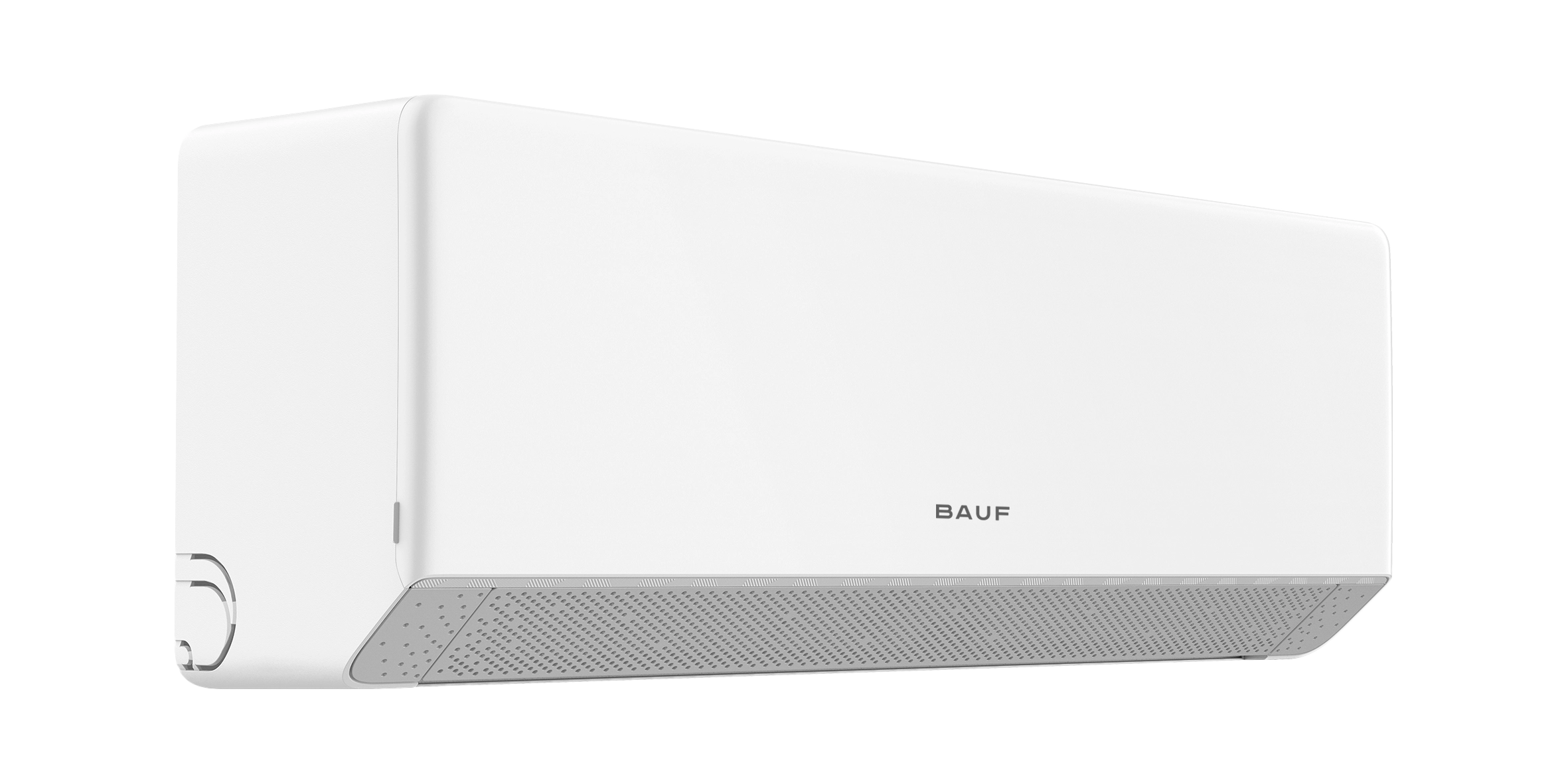

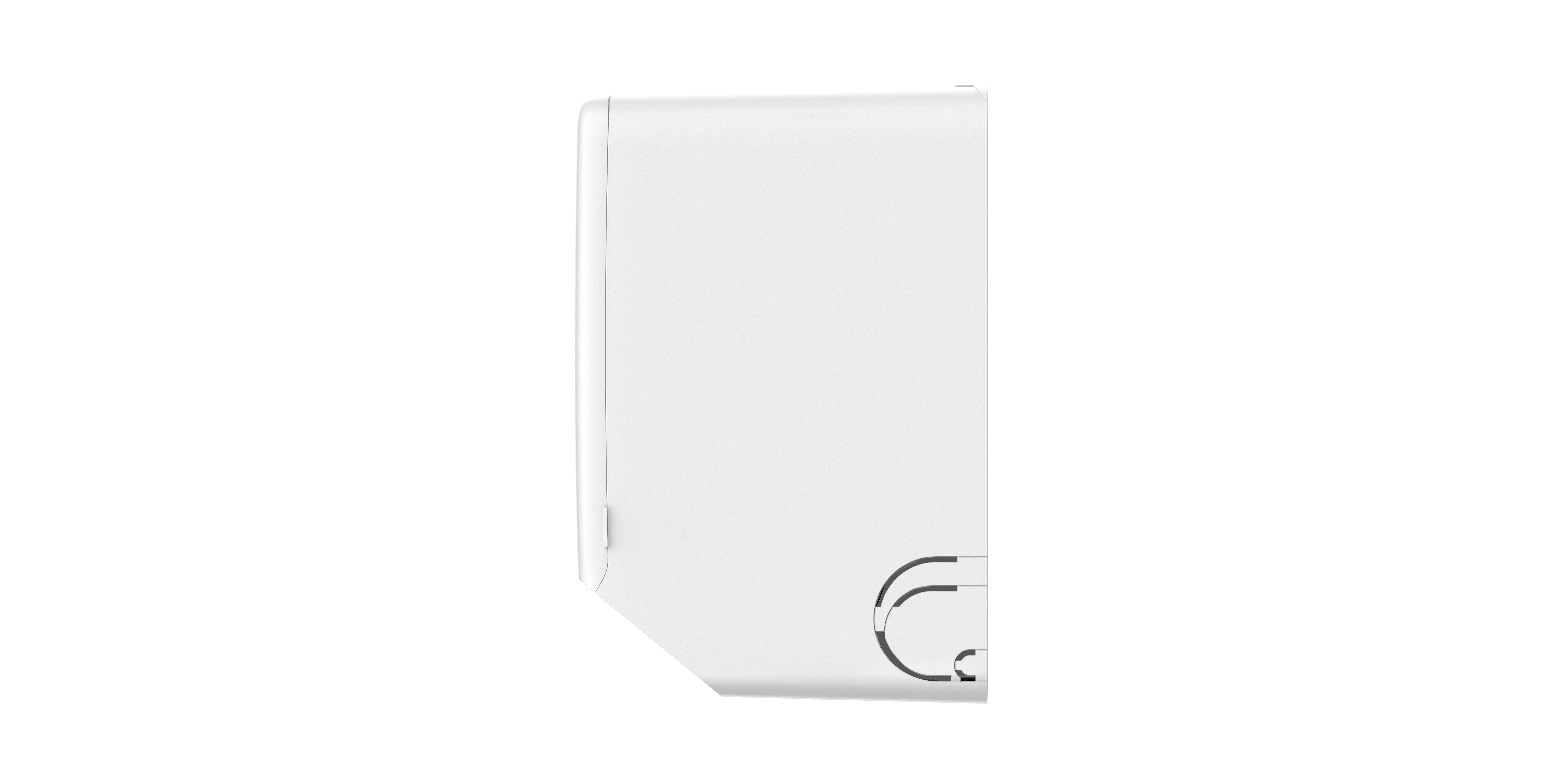

Momentum+
BRAC-SP-IM2-9-R3Our innovative breeze technology, featuring 2430 micropores, creates a comfortable environment without direct airflow, enhancing your cooling experience. The UVC air sterilizer effectively eliminates harmful microorganisms with a 99.9% sterilization rate, protecting your family’s health. The intelligent operation system includes an exclusive temperature control system, ECO mode for energy saving, and a level-gauge on the hanging plate for precise installation. Additionally, the LED wired controller and easy maintenance features make operation and upkeep a breeze.
A+++
Features — Momentum+

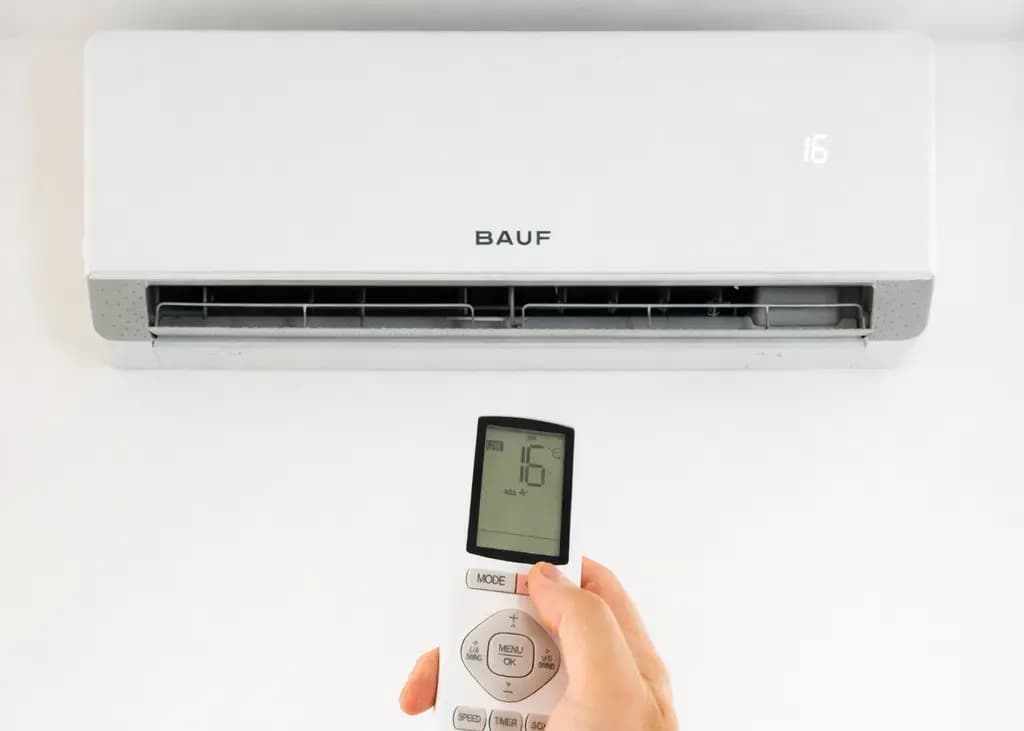

Remotely manage your air conditioner's settings using wifi and a mobile app, ensuring optimal comfort from anywhere.
Combines multiple filters hensive air purification, ensuring superior air quality.
Ensures precise installation by indicating the correct level for the indoor unit.
Utilizes micropore technology to evenly distribute air, enhancing cooling efficiency and providing a more comfortable environment.
Utilizes UVC radiation to kill bacteria by damaging their protein and DNA, ensuring sterile environment.

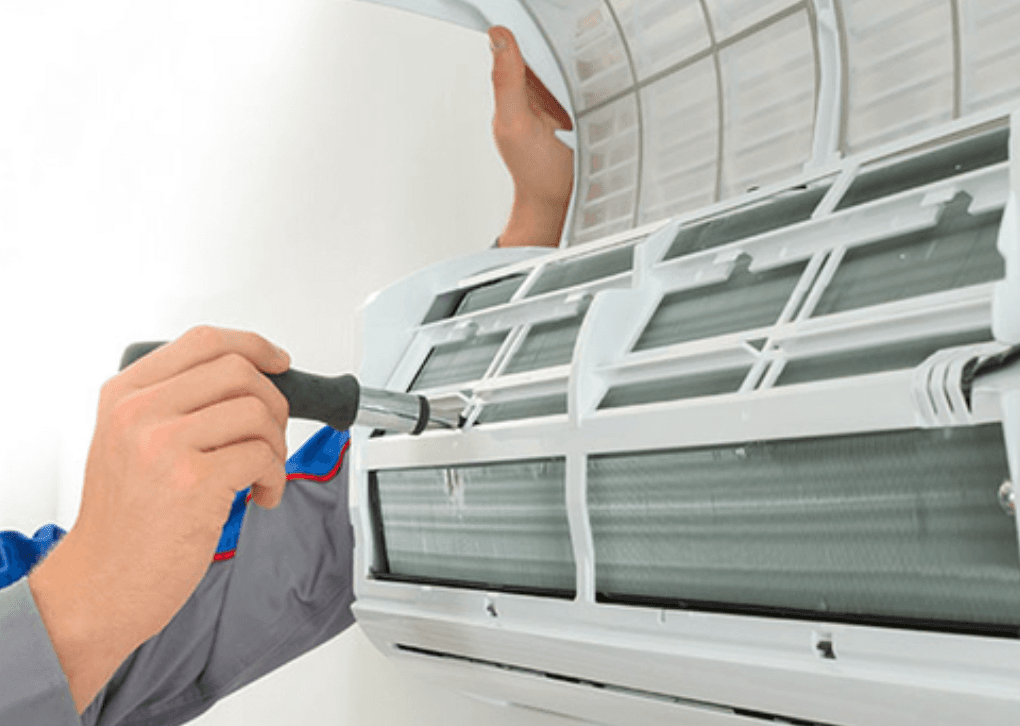

Simplifies PCB maintenance with just three steps: open front panel, remove PCB box cover
Technology 3D Inverter
Quick start
Rapid Comfort
Guaranted efficiency
Optimal Performance
Warranty 7 years
Quality confidence
Quiet operation
Silent Serenity
Self-diagnosis
Auto restart
Intelligent defrost system
Golden fin
BAUF New DC inverter control system technology
Precision Control of Your Environment Under any Conditions!
BAUF New Inverter System Control Tech- nology ensures smooth operation and achieves the highest energy efficiency through precise temperature control, 0.3 W in standby mode and compressor operation at 1Hz. As a result, the BAUF Inverter Compressor offers more stable operation with a super smooth inverter frequency variation, ensuring stable room temperatures under any conditions.
Up to
40%
Ultra Energy Saving
Withing
±1C
Comfort With Stable Temperature
Start From
60Hz
Ultra Quick Cooling & Heating
4D AIR FLOW
Helps to improve air distribution and flow, makes you feel more comfortable
High quality dc inverter compressor enhances air distribution and flow throughout your space, ensuring comprehensive comfort. This advanced feature directs air in all directions—up, down, left, and right—creating a uniform and consistent temperature. By eliminating hot and cold spots, 4D AIR FLOW ensures that every corner of the room feels equally comfortable, providing a more pleasant and balanced indoor environment for ultimate relaxation and well-being.
Specifications
BRAC-SP-IM2-9-R3Rated cooling capacity | kW | 2.7 |
|---|---|---|
Rated heating capacity | kW | 3.3 |
SEER for cooling | 8.7 | |
SCOP for heating | 4.7 | |
Indoor noise level | dB(a) | 20 |
Power supply | 220-240V 50Hz | |
Refrigerant/charge | kg | 0.6 |
Indoor air circulation cooling | m³/h | 1180/1030/940/850/600 |
Indoor air circulation heating | m³/h | 1180/1080/965/850/850 |
Connecting pipe gas | inch | 3/8 |
Connecting pipe liquid | inch | 1/4 |
Max. refrigerant pipe length | m | 20 |
Max. difference in level | m | 20 |
Ambient temp. range indoor | ||
Ambient temp. range outdoor | ||
Net dimensions (w x d x h) indoor | mm | 768×299×201 |

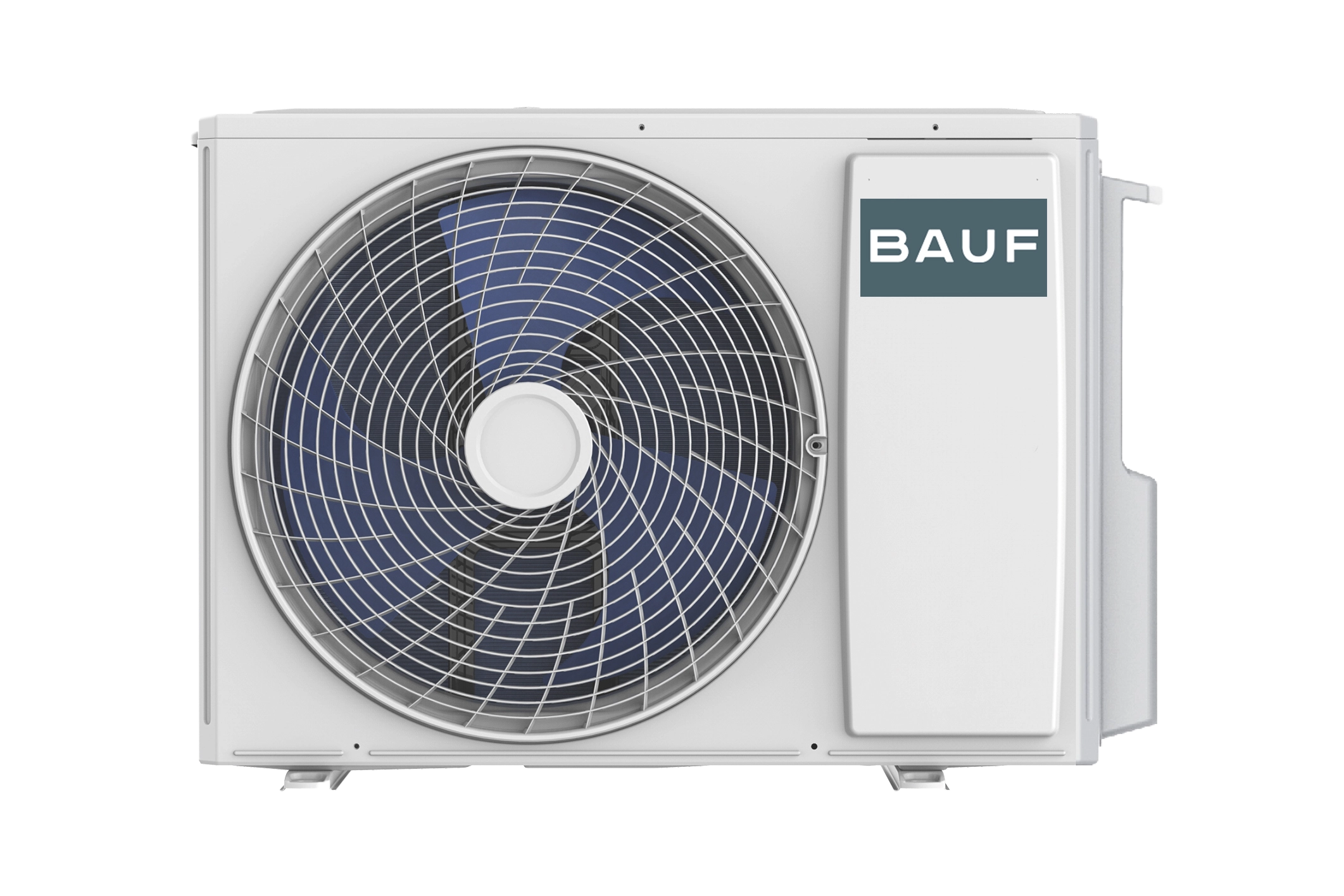

Net dimensions (w x d x h) outdoor | mm | 708×530×258 |
Net weight indoor | kg | 8 |
Net weight outdoor | kg | 22.5 |
