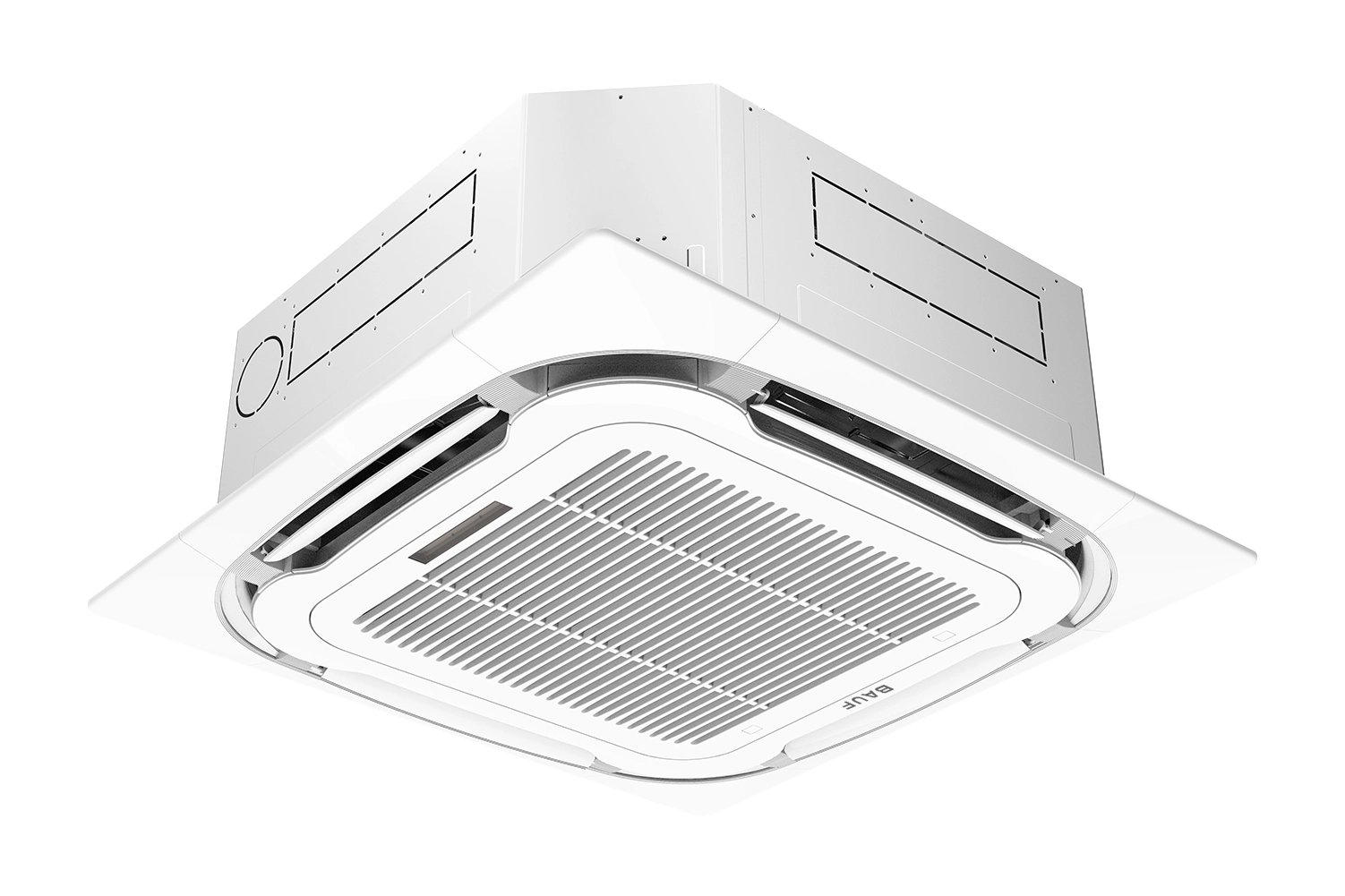

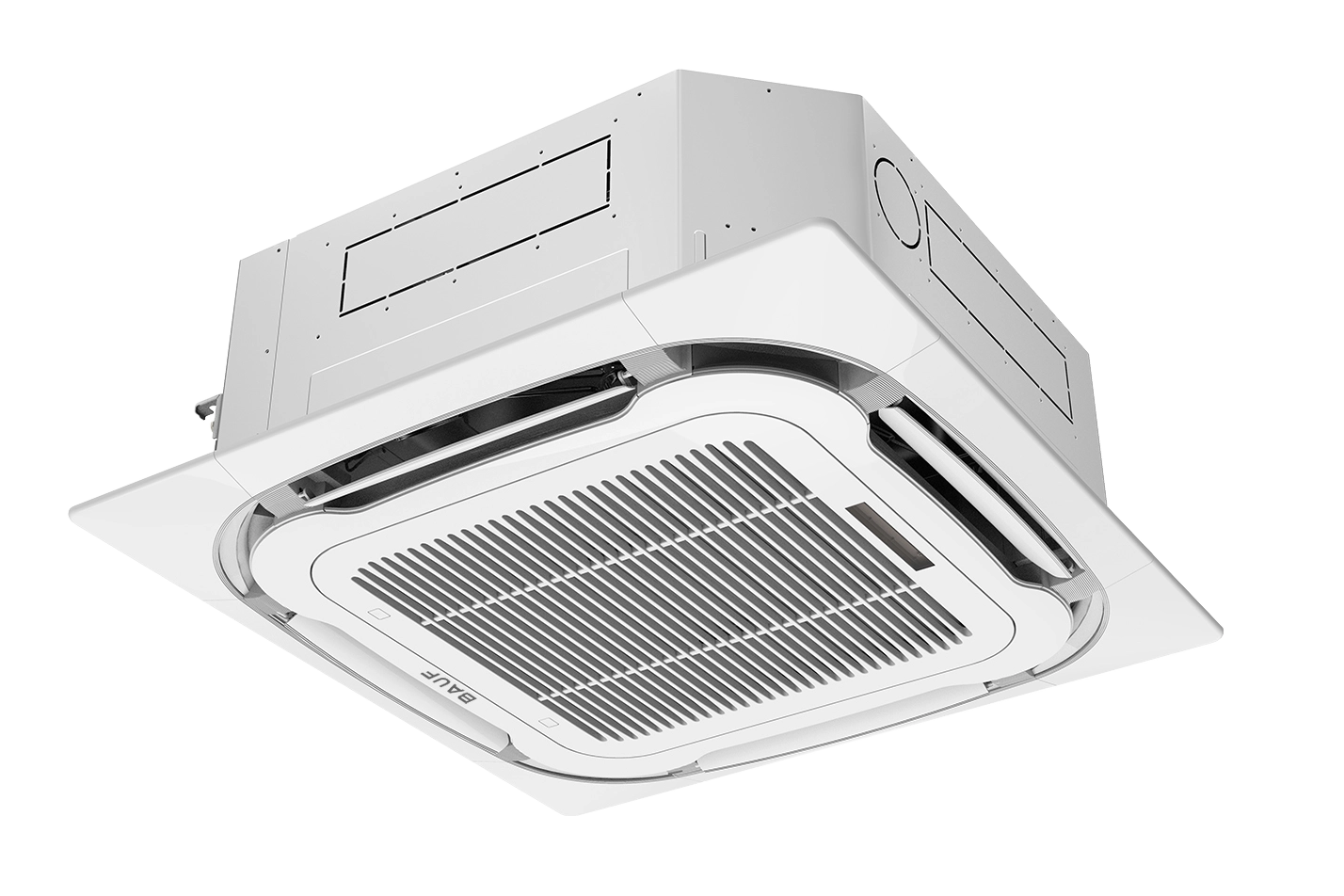

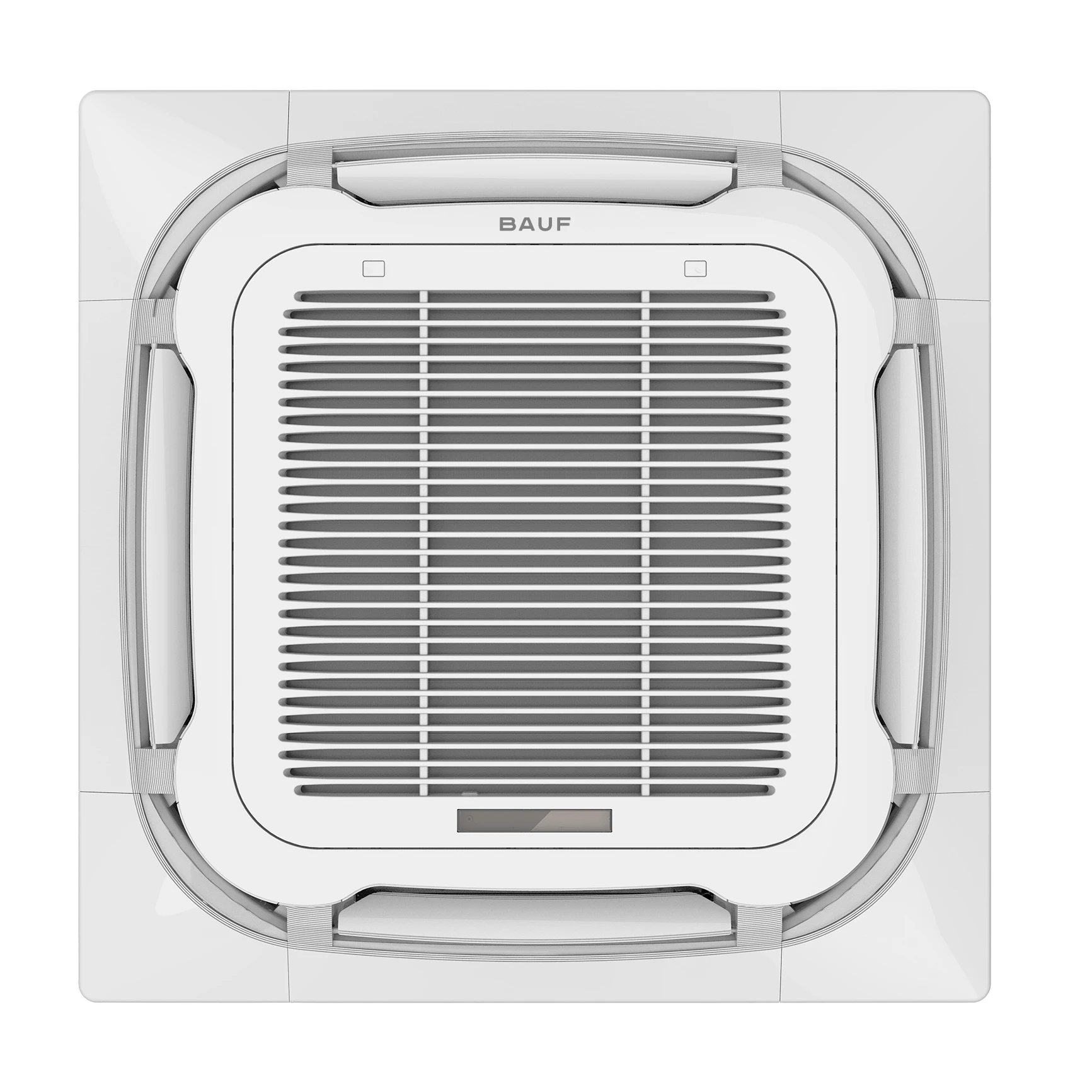

Cassette Y

BRAC-FM-IACA-9-R3-i

The cassette unit excels in delivering 360-degree airflow distribution, ensuring every corner of the room is uniformly comfortable. This even air distribution eliminates hot or cold spots, providing a consistent and pleasant indoor environment. Ideal for commercial spaces, offices, and large residential areas, this unit guarantees optimal comfort regardless of room size or layout. Equipped with advanced air filtration technology, the cassette unit significantly improves indoor air quality by removing dust, allergens, and other pollutants. This feature ensures that the air you breathe is clean and healthy, enhancing overall well-being and comfort. One of the key advantages of our cassette unit is its powerful performance combined with quiet operation. Despite its high capacity, the unit operates silently, ensuring a peaceful atmosphere perfect for work, relaxation, or sleep. The quiet operation does not compromise its effectiveness, providing robust climate control that meets the highest standards of comfort.

A++

FeaturesCassette Y

Intelligent Wi-Fi function

Remotely manage your air conditioner's settings using wifi and a mobile app, ensuring optimal comfort from anywhere.

Building Management System

Centralized control of multiple units with timers and mode settings, compatible with BACnet for managing up to 255 devices.

Fresh Air on-off contact wire controller

Introduces fresh outdoor air into the room, enhancing ventilation and maintaining a healthy indoor environment.

ON-OFF contact

Allows for easy control of the air conditioner's power state, enabling integration with external control systems.

Specifications

BRAC-FM-IACA-9-R3-i
Cooling Capacity
kW2.8 (1.50-3.55)
Heating Capacity
kW3 (1.60-3.81)
Power supply
220~240V 50Hz
Cooling Power Input
W40 (12~68)
Heating Power Input
W40 (12~68)
Air Flow Volume
m³/h700/620/530
Sound Pressure Noise Level
dB(A)42/36/32
Net Dimension (W*D*H)
mm570×570×260
Net (Panel)
mm650×650×55
Net(Body) Weight
kg14.5
Net(Panel) Weight
kg2.2
Connecting pipe gas
inch1/2
Connecting pipe liquid
inch1/4
